STS8200 PIM

Analog and Power Bricks

Leading high-power-delivery power semiconductor test system catering multi-bridges and power bricks modules for EV mobility and solar industries.

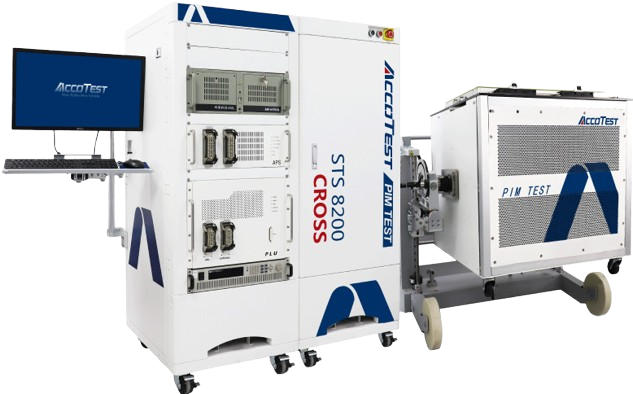

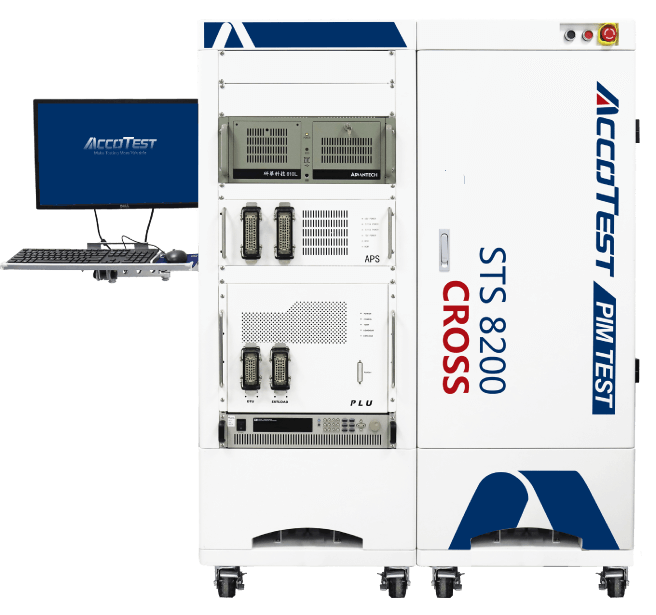

AccoTest STS8200 PIM

Hard Docking with Independent AC and DC Zones

One test head with two sockets or combined AC and DC for reduced test handler complexity and touchdown.

Analog Resources Integration

Flexibility of analog and digital capabilities to extend test methodologies and resource optimisations.

High Performance Waveform Capture and Data Acquisition

Built-in high bandwidth digitizer for dv/dt, di/dt and dynamics computation with 14-bits resolution for waveform capture.

Key Features

Maximum Voltage and Current Ratings:
  • ±2000V/1000A (DC Static with 2000A option)
  • 100kHz-1MHz ZMU (±40V DC Bias up to ±2000V option)
  • Low leakage current range of ± 1nA
  • Precision 18-bit voltmeter measurement
  • IC resource digital capability
  • 1200V/12000A dynamic test capabilities, hard or soft docking
Features system mainframe of 26 universal slots for Analog, Digital PMIC resources. Ultra high
power DC and dynamic resources are located in the test head for optimum and precision test
and measurement with high speed waveform capture capabilities.
All AccoTEST test systems include comprehensive and no licence-based UI interface with
full support for debug tools, waveform generation, and database generation tools with analytics.
